The Honeycomb Storage Wall is an open printable pegboard: hexagon grid panels screw to the wall, and hooks and holders twist into the cells. I use it around the workshop, and a printed HSW side panel on the K1C holds its tools.
Parts I print
| Part | Use |
|---|---|
| Grid panel, 215 x 212 mm | The base grid |
| Fabric clip | Clip with an M3 screw mount |
| Cutter holder 2B | Utility knife holder |
| Hooks, 20 mm, with and without tabs | General hanging |
| Wall hook, 20 mm | Hooks that sit flat on the wall |
| Holder, 100 x 70 x 100 mm | Open holder |
| Connector insert, 2 pin | Holds two-pin connectors |
| Hex key insert, 8 mm | Holds an 8 mm hex key |
| x1, x2 and x4 inserts | Countersunk, hollow and M4 versions to screw items into a cell |

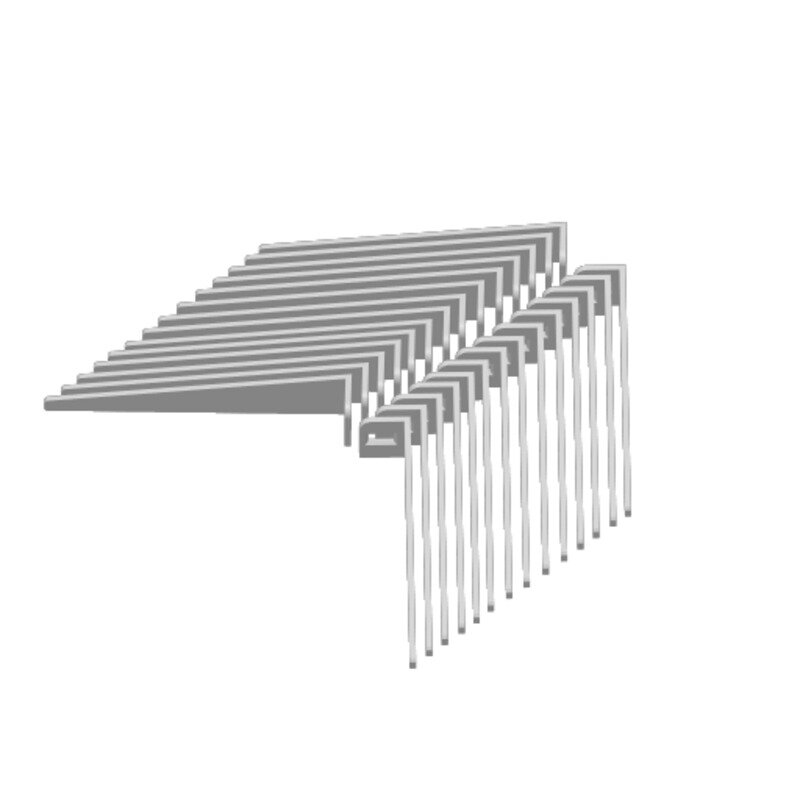

The inserts are downloaded designs. I also designed a set of PETG brackets in Onshape to mount a grid panel in one specific spot in the house.
Print settings
| Setting | Grid and hooks | Brackets |
|---|---|---|
| Material | PLA | PETG |
| Layer height | 0.2 mm | 0.2 mm |
| Infill | 20% gyroid | 40% gyroid |
| Walls | 3 | 4 |
| Top and bottom | 4 layers | 5 layers |
| Supports | None | Touching the bed |
| Temperatures | 215 °C, bed 60 °C | 235 °C, bed 85 °C |
Panels with the fabric clip use M3 x 8 screws.
Specs
- System
- Honeycomb Storage Wall (HSW)
- Panel
- 215 x 212 mm grid
- Material
- PLA for panels and hooks, PETG for brackets
